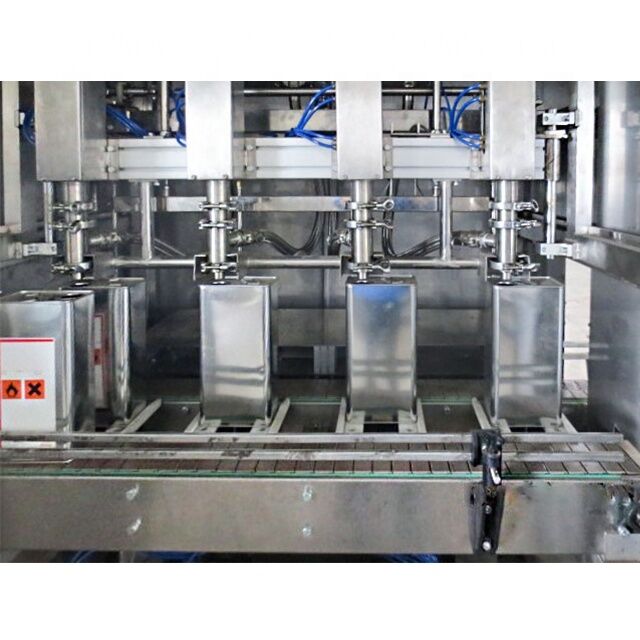

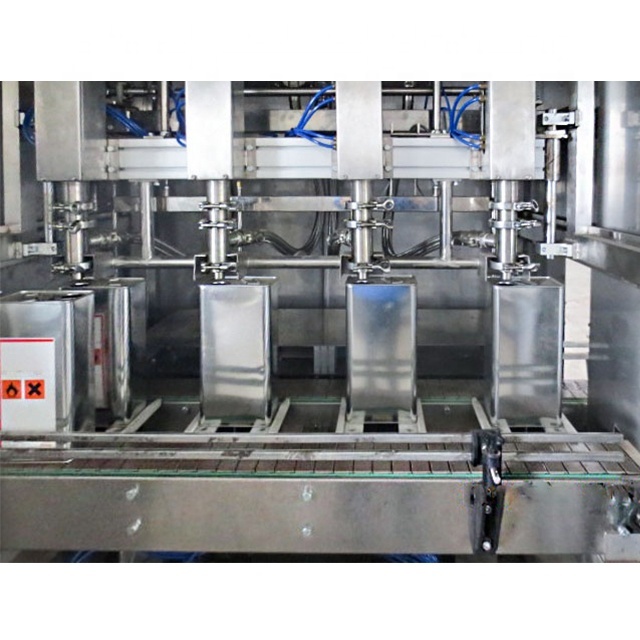

Automatic Tin Can Filling Line

Tin Can Filling Machine with 4 Nozzles GZ-18ST-3(Square Metallic Tin)

*Product Application:

   Applications include free flowing to viscous products, including chunky products. Fill

   volumes from 5L to 25L at high flow rates with accuracies up to ±0.2% dependent upon tin

   can size and type of product.

*Technical Specification:

*Filling System includes:

  1). Three (3) set of SS304 Nozzle equipped;

  2). No spilling of the product onto clean cans and roller conveyor with hood cover under the

       nozzle.

  3). Quick-release, fast inter-changeable lance for easy and fast maintenance;SS316 straight

       pipe;

  4). Top/Low Fill, auto lowering of lance assembly together with the hood cover and retract to

        its original up position;

  5). METTLER TOLEDO Brand Weight Scaler with digital display;

  6). Heavy duty weighting platform mounted single load cell, overload protected;

  7). All parts in contact with liquid must be in SS304&PTFE seals;

  8). spring assists to close filling nozzle in the even of power failure;

  9). Stainless steel 304 enclosure with front viewing Perspex mounted hinge cover;

  10). IP55 class control cabinet to house weighing indicator and pneumatic box to house all

        pneumatic components.

*Control system includes:

     1). Germany Siemens/Japan Omron PLC Control System;

     2). Manual/Net/Gross Filling. Auto two stages fast/dribble fill

* Optional Item&Accessary Equipment

    1). Digital Touch Screen Panel with System Integration;

    2). PLC to DCS synchronization and simulation;

    3). Storage tank with level controller;

    4). Available to suit Hazardous Environments with Ex-proof system;

    5). Tin De-palletizer and Palletizer

    6). Auto Capping Machine (Both of Press-on and screw cap);

     7). Check weight, labeler, robot arm palletizer,etc

     8). Nozzle diving system for foamy product.

Customized according to the customer request is also allowed.

Call/email now for a quick response to your application questions.
