Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line

Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line
Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line
Basisinformatie
Plaats van herkomst: Shanghai, China
Merknaam: Daesum
Min. bestelaantal: 1
Beste prijs Contact nu
video uitgaande inspectie: Mits testrapport van machines: Mits
Kerncomponenten: PLC, Silo, Mixer, Schroeftransporteur Applicatie: Bouw
Spanning: 380 V Vermogen (w): 400
Gewicht: 200000 KG Garantie: 1 jaar
Belangrijkste verkoopargumenten: Automatisch, eenvoudig te bedienen, lange levensduur, nauwkeurig Machinenaam: het mengen zich installatie
Product: Droog poeder/mortel/gips Het wegen sacle: 8 reeksen
Materiaal: Staal/Ijzer Mixer: 2 set
Productiecapaciteit: 60000 ton/jaar Marketingtype: Gewoon product
Service na verkoop verleend: Ja Automatisering: Baten en wegen
Functie: Droge mortelmenging
Markeren:

Automatic dry mortar mix plant 380V

,

Dry mortar mixing line 60000 ton/year

,

Construction mortar plant 400W capacity

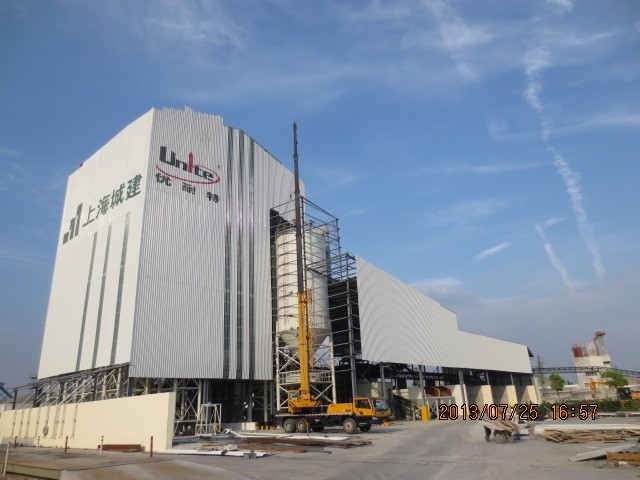

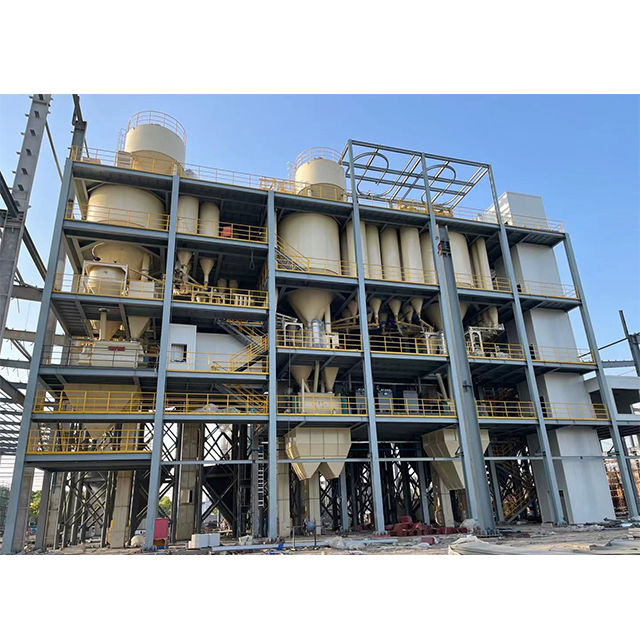

Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 0Dry powder/mortar Mixing plant

Introdction

  The mortar mixing plant is mainly composed of mixing host, material weighing system, material conveying system, material storage system and control system and other auxiliary facilities.

  The mixing plant has the advantages of environmental protection, energy saving, high efficiency, stability and safety.



Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 2



 Product parameters



Production line type DX-PT20-2 Dry sand storage silo(s)  40m³*4
Product type Speacial powder product

Powder storage silo(s)

  40m³*4
Yearly output(one shift)  60,000 MT  Small material silo(s)  30m³*8
     Additive silo(s)  0.5m³*12
Yearly output(one mixer)  30-40 Thousand MT Finished product hooper(s)  5m³*2
Powder product output  2*12t/h Valve bag packing line(s)  3-mouth impeller packer*2
Mixer*2  WAM 2m³ Plough type  dust exhauster(s)

28 sets
Weighing system  8 sets Blow tank(s) 6 sets
WAM manual butterfly valves  24 sets  WAM pneumatic butterfly valve(s)  18 sets
 WAM screw feeders 23 sets  Small and micro material dosing screw feeder(s)  12 sets

Peripheral Equipment



Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 4Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 6Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 8Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 10



Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 12Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 14Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 16Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 18Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 20

label:

Automatische installatie voor het mengen van droge mortel,

Fabriek voor het mengsel van staal met droog mortel,

ISO-installatie voor droogmortier
